AR 243-100

Back
Technical Specifications

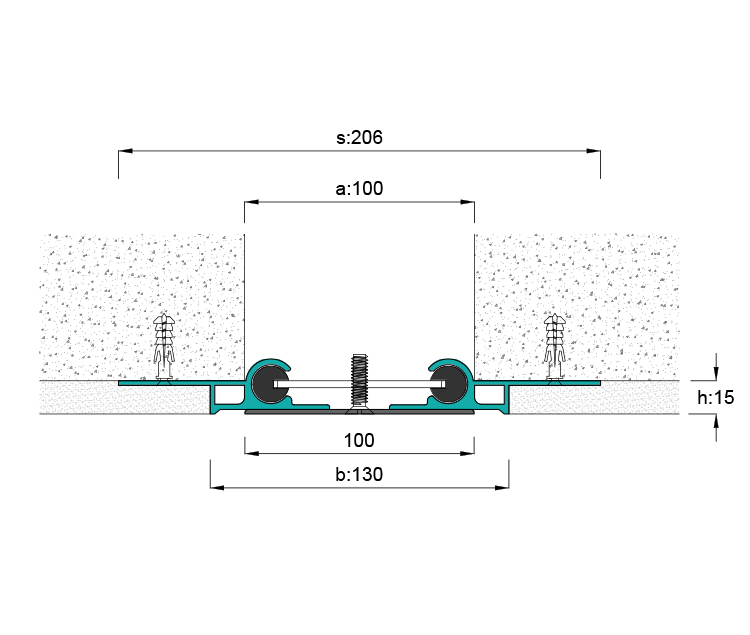

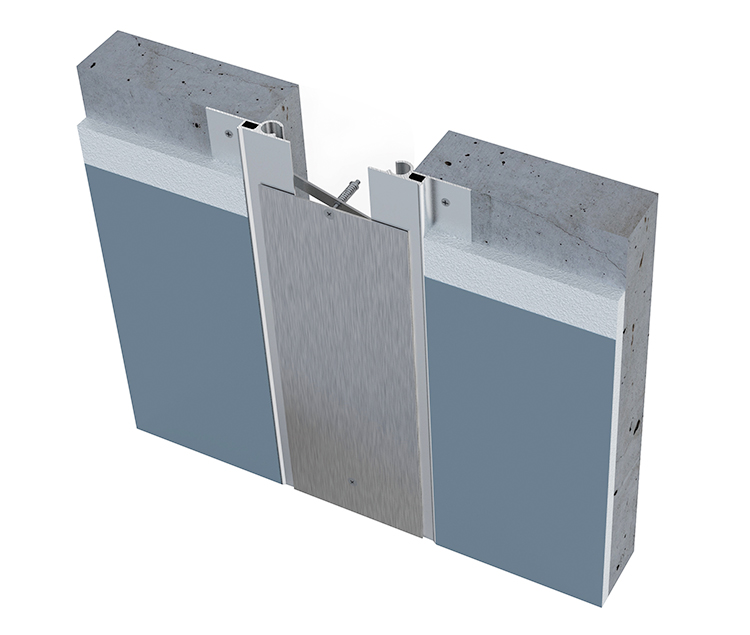

Surface Mounted Seismic Expansion Joint Wall & Ceiling Profile compatible with AR813 series and suitable for Ceramic, Plaster and Drywall. It has Stainless Steel Cover Surface.

Width: 100 mm
Height: 15 mm
Movement Capacity: +40/-50 mm
Profile Length: 3 mt
