Floor Profiles for Under Finishing

AR 120-030

Technical Specifications

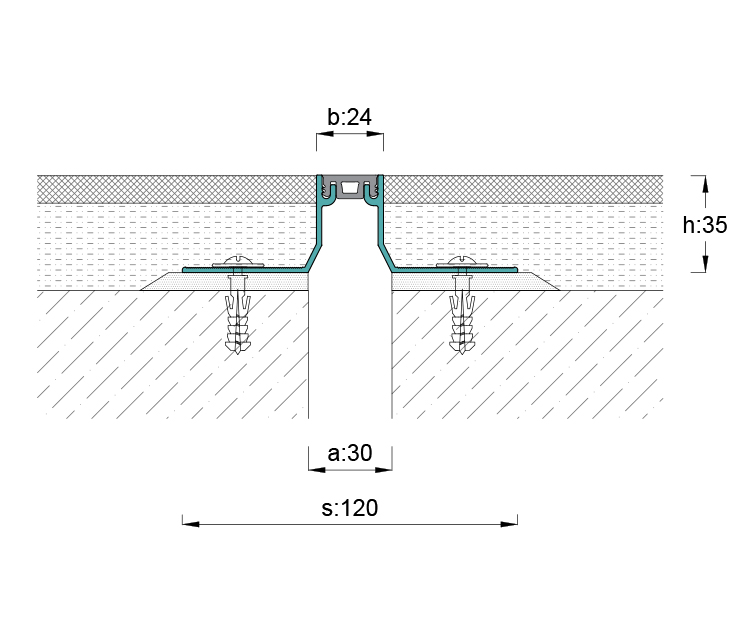

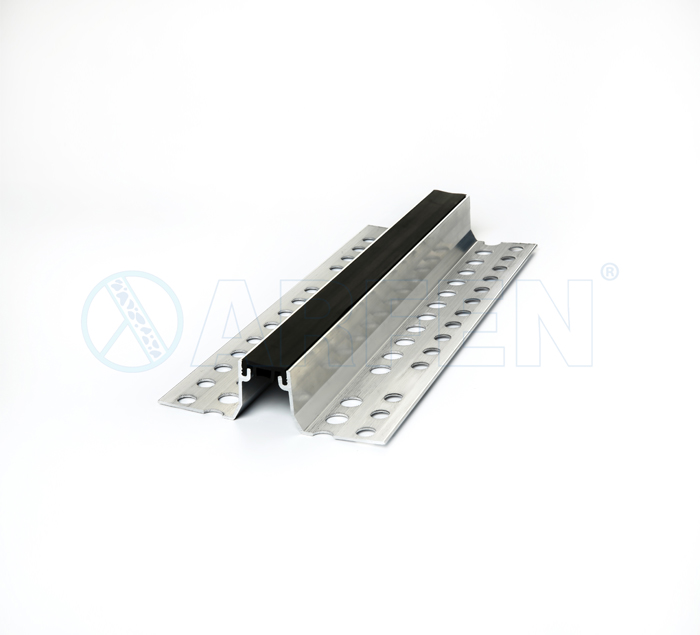

Flush Mounted Expansion Joint Profile suitable for overlays such as ceramic, marble, granite and carpet finishings where narrow insert is used.

Width:	30 mm
Height-Load Capacity:	35 mm \| Resistant to Pedestrian Traffic.
Movement Capacity:	+/-5 mm
Profile Length:	3 mt
