AR 902-051

Technical Specifications

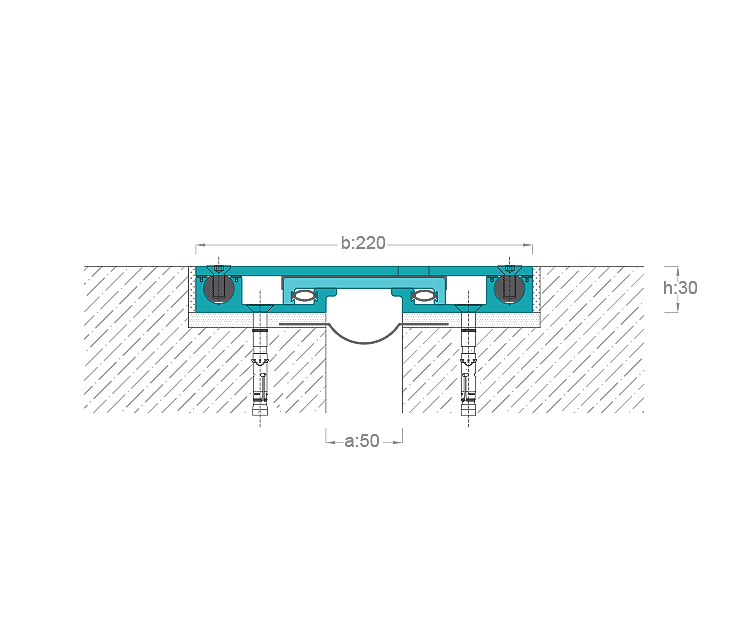

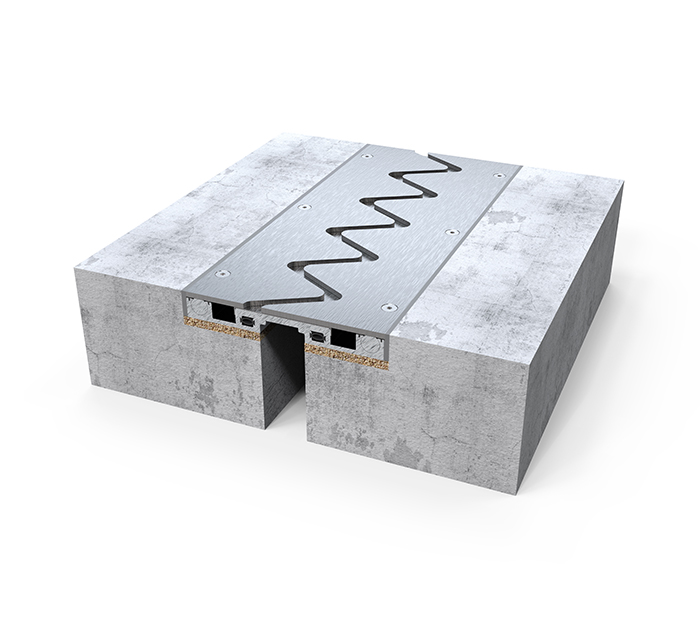

Flush Mounted Expansion Joint profile with aluminium reinforcement at below, stainless steel top surface and resistant to intense forklift load. Suitable for Industrial Structures

Width:	50 mm
Height-Load Capacity:	30 mm \| Resistant to 60 tones vehicle and 9 tones forklift load
Movement Capacity:	+/-20 mm
Profile Length:	2 mt

AR 902-051

Technical Specifications

Flush Mounted Expansion Joint profile with aluminium reinforcement at below, stainless steel top surface and resistant to intense forklift load. Suitable for Industrial Structures

Width:	50 mm
Height-Load Capacity:	30 mm \| Resistant to 60 tones vehicle and 9 tones forklift load
Movement Capacity:	+/-20 mm
Profile Length:	2 mt

Floor Profiles for Under Finishing

AR 902-051

Back

Technical Specifications

Flush Mounted Expansion Joint profile with aluminium reinforcement at below, stainless steel top surface and resistant to intense forklift load. Suitable for Industrial Structures

Width:	50 mm
Height-Load Capacity:	30 mm \| Resistant to 60 tones vehicle and 9 tones forklift load
Movement Capacity:	+/-20 mm
Profile Length:	2 mt

AR 902-051

Technical Specifications

Flush Mounted Expansion Joint profile with aluminium reinforcement at below, stainless steel top surface and resistant to intense forklift load. Suitable for Industrial Structures

Width:	50 mm
Height-Load Capacity:	30 mm \| Resistant to 60 tones vehicle and 9 tones forklift load
Movement Capacity:	+/-20 mm
Profile Length:	2 mt
