AR 183-080

Technical Specifications

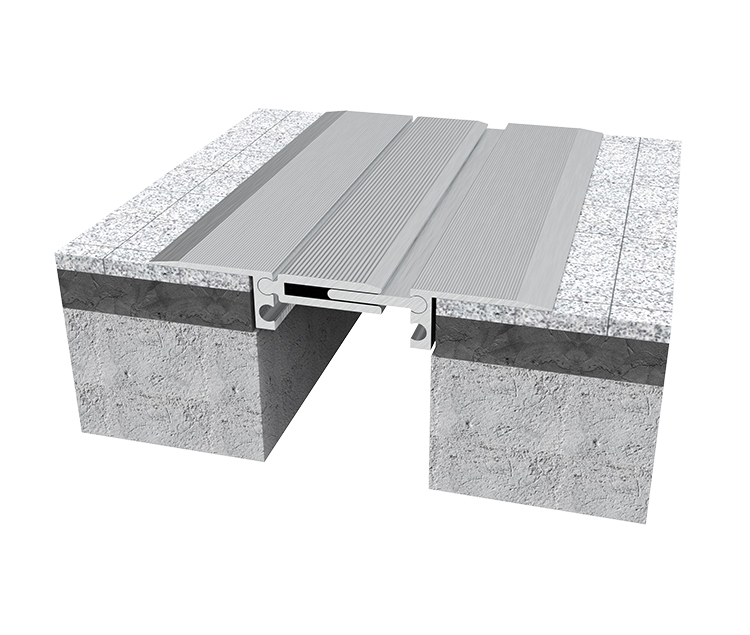

Surface Mounted Expansion Joint Floor Profile with screw holes and suitable for granite,ceramic,vinyl floorings and industrial floors. Assembled Delivery.

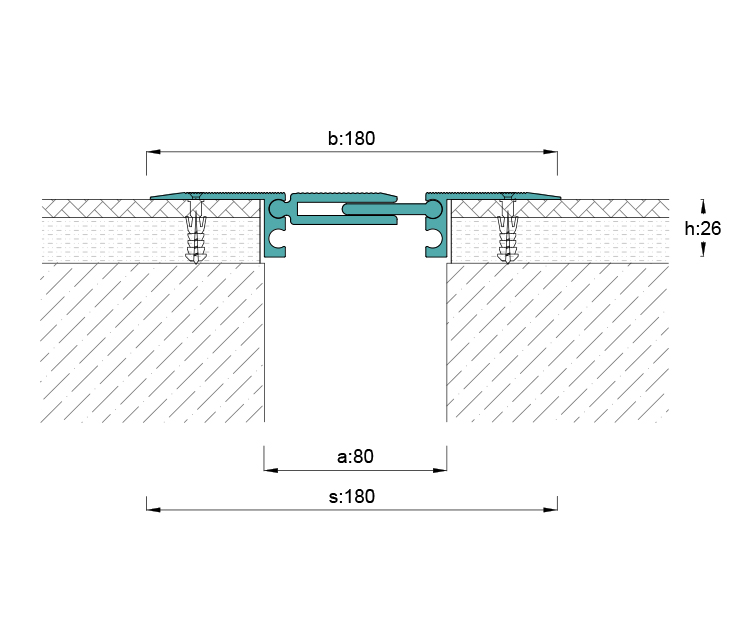

Width:	80 mm
Height-Load Capacity:	26 mm \| Resistant to 2.5 tones vehicle load
Movement Capacity:	+/-12 mm
Profile Length:	3 mt

AR 183-080

Back

Technical Specifications

Surface Mounted Expansion Joint Floor Profile with screw holes and suitable for granite,ceramic,vinyl floorings and industrial floors. Assembled Delivery.

Width:	80 mm
Height-Load Capacity:	26 mm \| Resistant to 2.5 tones vehicle load
Movement Capacity:	+/-12 mm
Profile Length:	3 mt

AR 183-080

Back

Technical Specifications

Surface Mounted Expansion Joint Floor Profile with screw holes and suitable for granite,ceramic,vinyl floorings and industrial floors. Assembled Delivery.

Width:	80 mm
Height-Load Capacity:	26 mm \| Resistant to 2.5 tones vehicle load
Movement Capacity:	+/-12 mm
Profile Length:	3 mt

AR 183-080

Back

Technical Specifications

Surface Mounted Expansion Joint Floor Profile with screw holes and suitable for granite,ceramic,vinyl floorings and industrial floors. Assembled Delivery.

Width:	80 mm
Height-Load Capacity:	26 mm \| Resistant to 2.5 tones vehicle load
Movement Capacity:	+/-12 mm
Profile Length:	3 mt
