20 cm Expansion Joint Profiles For Floor

AR 951-300 (30 cm Gap)

Back
Technical Specifications

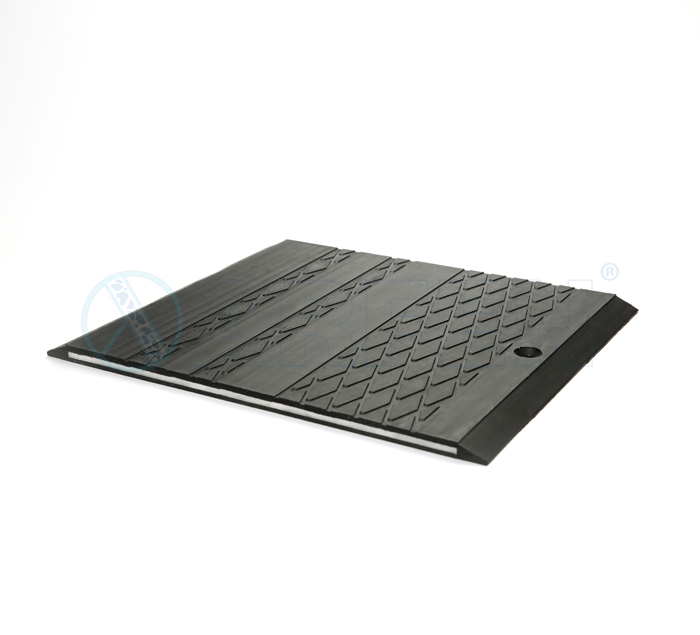

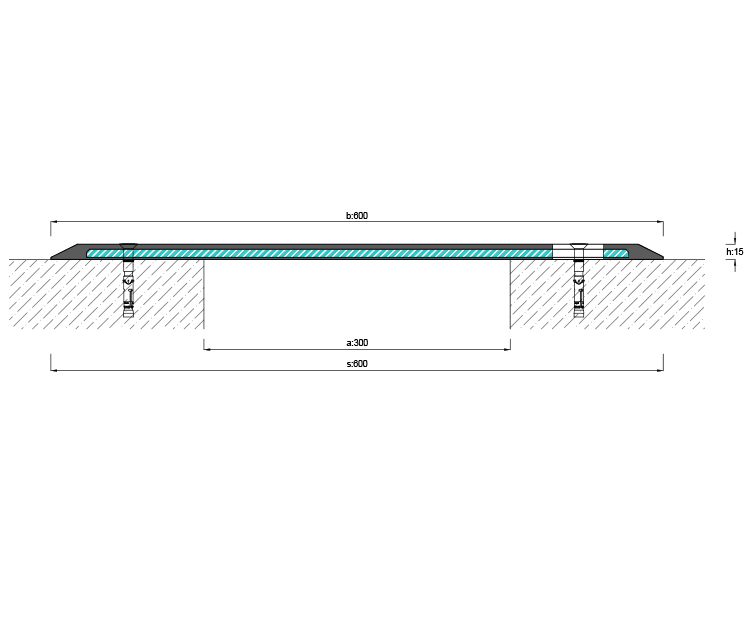

ST37 grade steel and rubber composite Surface Mounted Floor Expansion Joint Profile suitable for Parking Lots. There is a countersink hole on one side of the profile and an almond hole on the other side.

Width: 300 mm
Height-Load Capacity: 15 mm | Resistant to 3,5 tones vehicle load
Movement Capacity  +/- 28 mm
Profile Length: 2 mt
