AR 600-150SS

Back
Technical Specifications

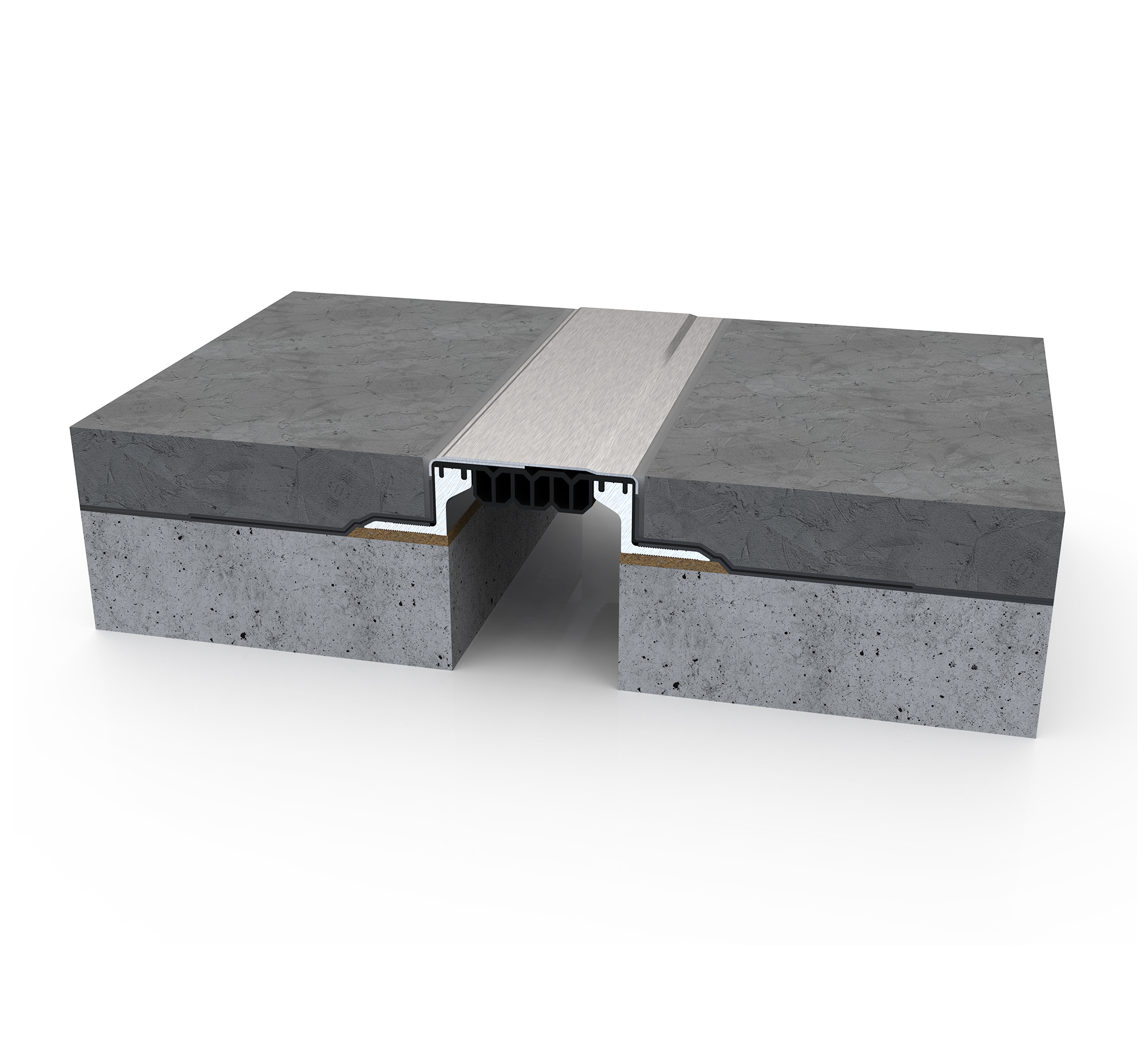

Full top stainless steel Expansion Joint profile Compatible with rubber based bituminous membrane which provides waterproofing and suitable for Waterproofing required areas such as terrace, parking lots. When thermal insulation applied on the water insultaion, profile system should be raised by heel concrete. It is recommended to use geotextile on the membrane for protection.

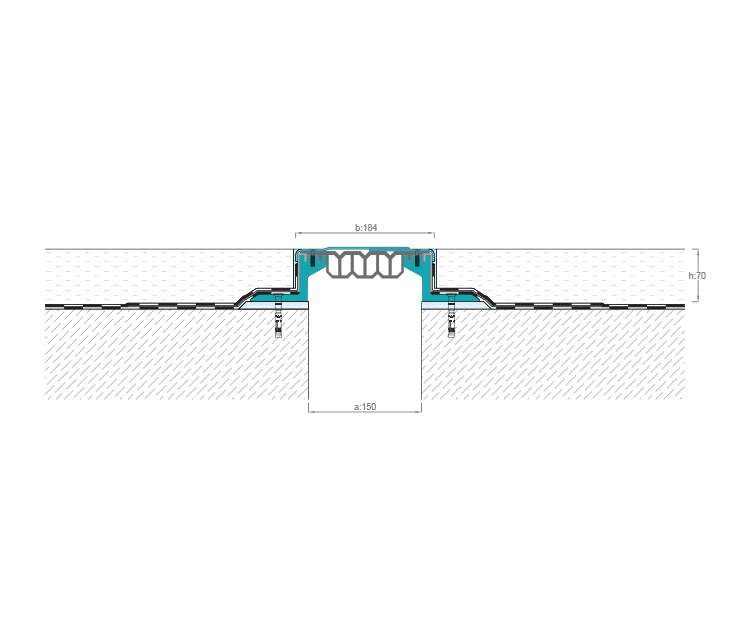

Width : 150 mm
Height-Load Capacity : 70 mm | Resistant to 15 tones vehicle, 6 tones forklift load. t:2.5 mm stainless steel top caps, 28 cm width thermoplastic side wings, hot air welded corner details of connection points are available. UV Resistant.
Movement Capacity: +/- 50 mm
Profile Length: 3 mt
