AR 806-400 (40 cm Gap)

Technical Specifications

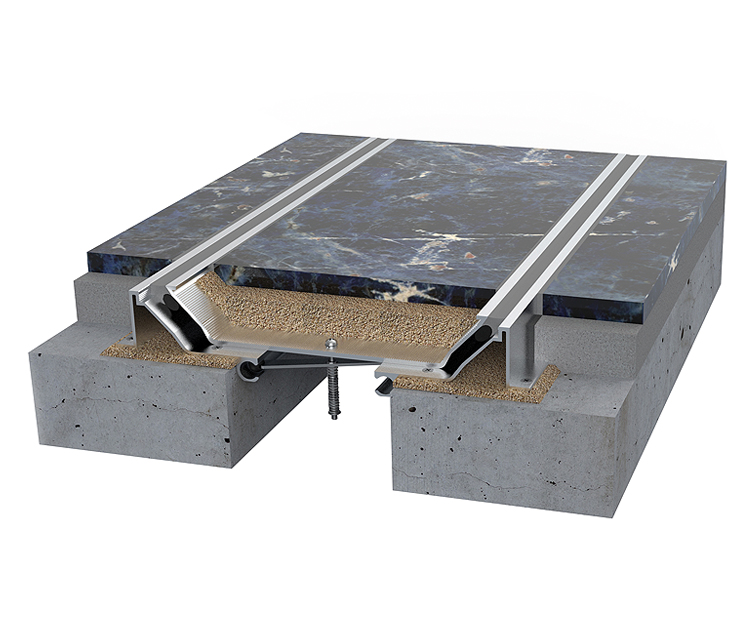

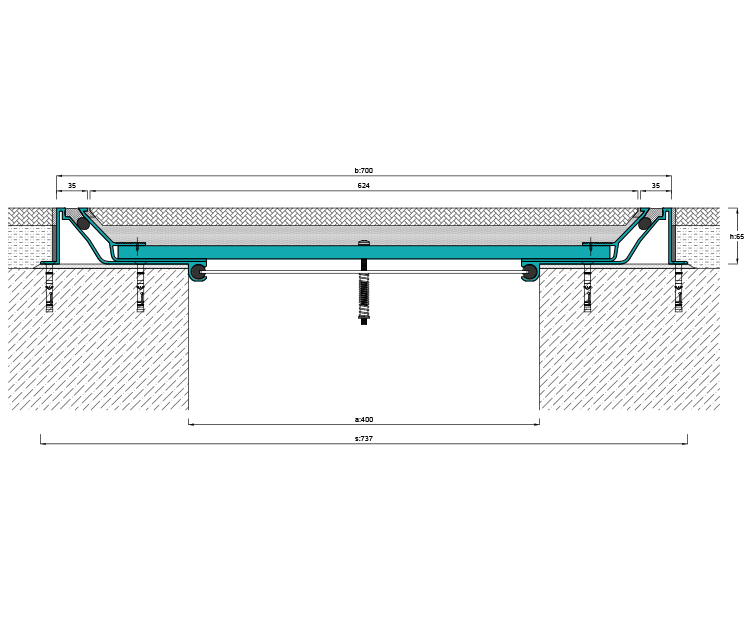

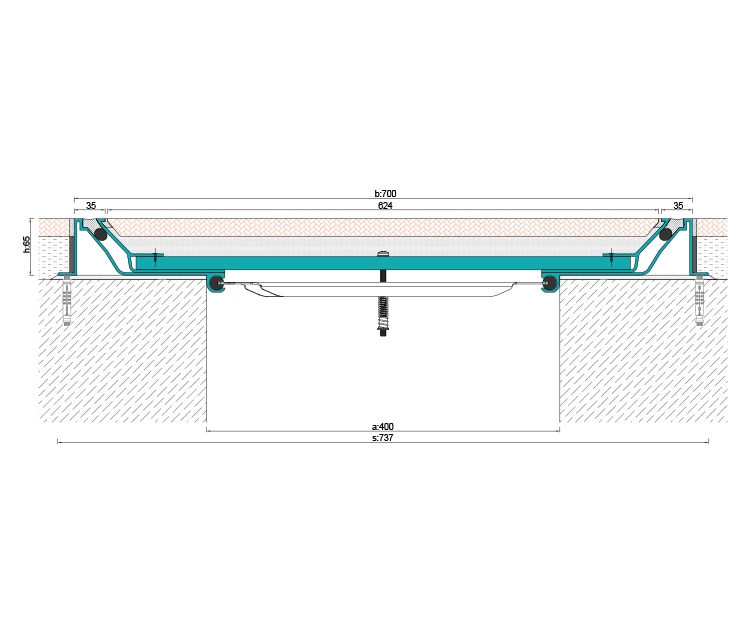

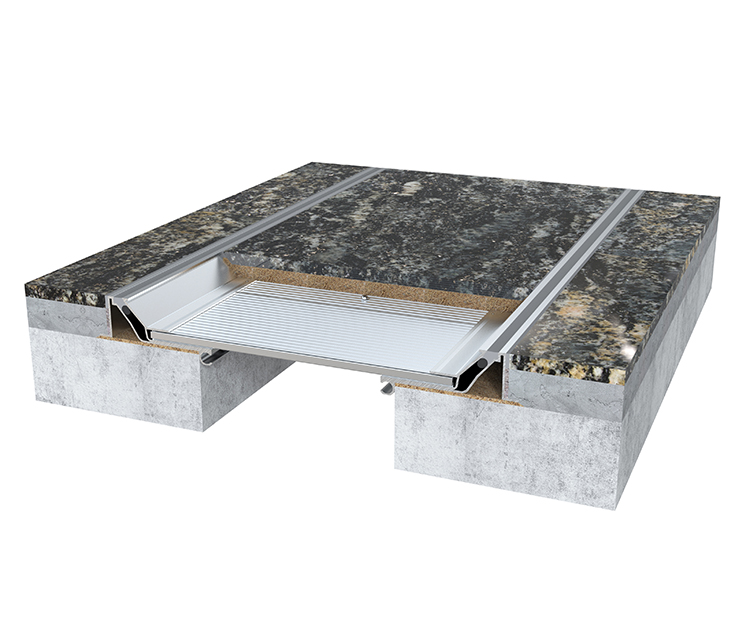

Sealant Applied, Flush Mounted Seismic Expansion Joint Floor Profile suitable for 40 cm gap with high movement capacity.

Width:	400 mm
Depth-Load Capacity:	65 mm \| Resistant to pedestrian and cleaning machine load
Movement Capacity:	+/-200 mm
Profile Length:	3 mt
