Wall and Ceiling Profiles for Under Finishing

AR 234-300 (30 cm Gap)

Technical Specifications

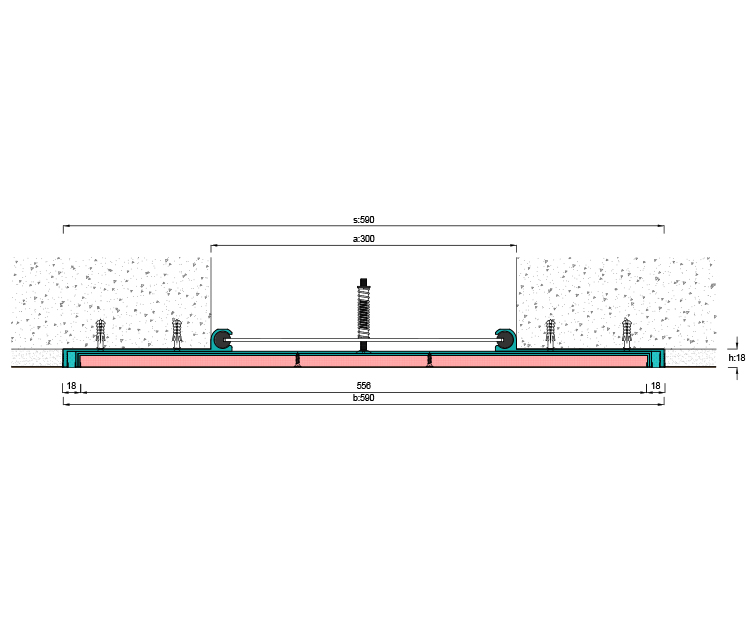

Flush Mounted Seismic Expansion Joint Wall & Ceiling Profile compatible with AR804 series and suitable for Ceramic, Plaster and Drywall. It has Stainless Steel Cover Caps.

Width:	300 mm
Height:	18 mm
Movement Capacity:	+/-75 mm
Profile Length:	3 mt

AR 234-300 (30 cm Gap)

Technical Specifications

Flush Mounted Seismic Expansion Joint Wall & Ceiling Profile compatible with AR804 series and suitable for Ceramic, Plaster and Drywall. It has Stainless Steel Cover Caps.

Width:	300 mm
Height:	18 mm
Movement Capacity:	+/-75 mm
Profile Length:	3 mt

AR 234-300 (30 cm Gap)

Technical Specifications

Flush Mounted Seismic Expansion Joint Wall & Ceiling Profile compatible with AR804 series and suitable for Ceramic, Plaster and Drywall. It has Stainless Steel Cover Caps.

Width:	300 mm
Height:	18 mm
Movement Capacity:	+/-75 mm
Profile Length:	3 mt

AR 234-300 (30 cm Gap)

Technical Specifications

Flush Mounted Seismic Expansion Joint Wall & Ceiling Profile compatible with AR804 series and suitable for Ceramic, Plaster and Drywall. It has Stainless Steel Cover Caps.

Width:	300 mm
Height:	18 mm
Movement Capacity:	+/-75 mm
Profile Length:	3 mt
