Floor Profiles for Under Finishing

AR 901-100

Technical Specifications

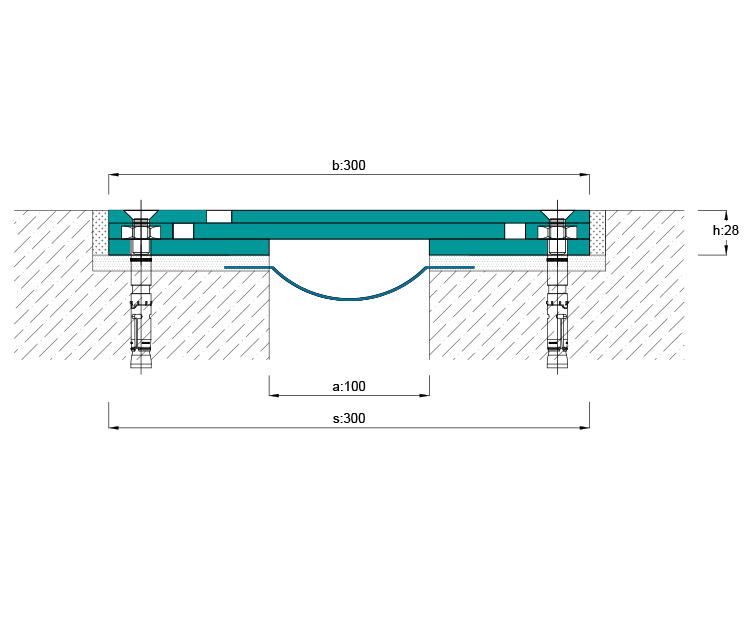

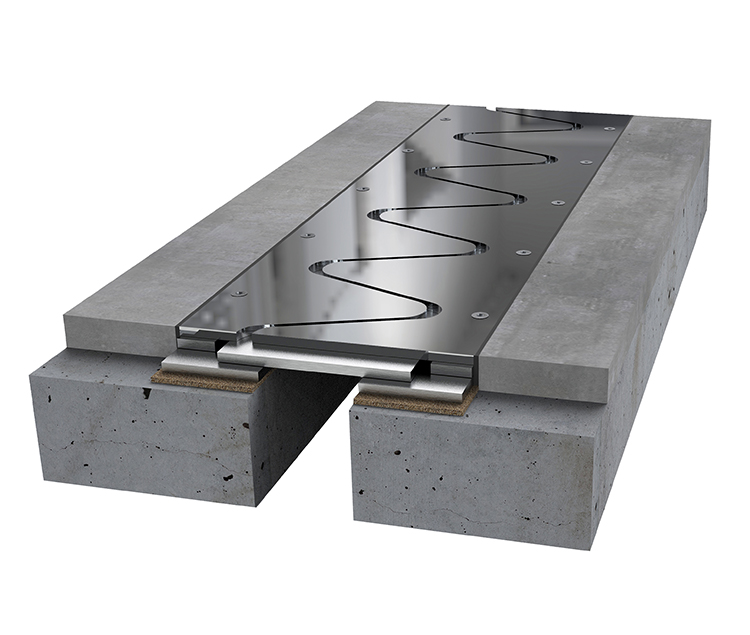

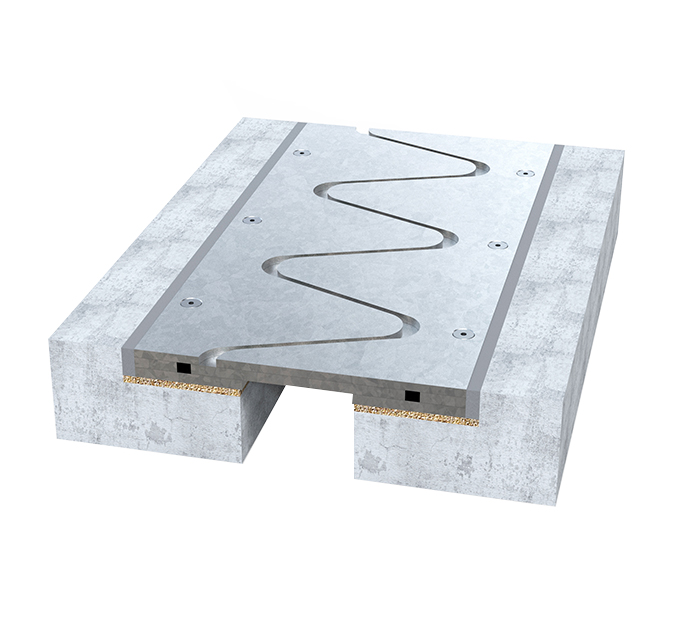

Flush Mounted Expansion Joint profile with steel reinforcement at below, galvanized steel top surface and resistant to intense forklift load. Suitable for Industrial Structures

Width:	100 mm
Height-Load Capacity:	28 mm \| Resistant to 60.0 tones vehicle load and 9 tones forklift load.
Movement Capacity:	+/-10 mm
Profile Length:	2 mt

AR 901-100

Technical Specifications

Flush Mounted Expansion Joint profile with steel reinforcement at below, galvanized steel top surface and resistant to intense forklift load. Suitable for Industrial Structures

Width:	100 mm
Height-Load Capacity:	28 mm \| Resistant to 60.0 tones vehicle load and 9 tones forklift load.
Movement Capacity:	+/-10 mm
Profile Length:	2 mt

AR 901-100

Technical Specifications

Flush Mounted Expansion Joint profile with steel reinforcement at below, galvanized steel top surface and resistant to intense forklift load. Suitable for Industrial Structures

Width:	100 mm
Height-Load Capacity:	28 mm \| Resistant to 60.0 tones vehicle load and 9 tones forklift load.
Movement Capacity:	+/-10 mm
Profile Length:	2 mt

AR 901-100

Technical Specifications

Flush Mounted Expansion Joint profile with steel reinforcement at below, galvanized steel top surface and resistant to intense forklift load. Suitable for Industrial Structures

Width:	100 mm
Height-Load Capacity:	28 mm \| Resistant to 60.0 tones vehicle load and 9 tones forklift load.
Movement Capacity:	+/-10 mm
Profile Length:	2 mt
