AR 932-100

Technical Specifications

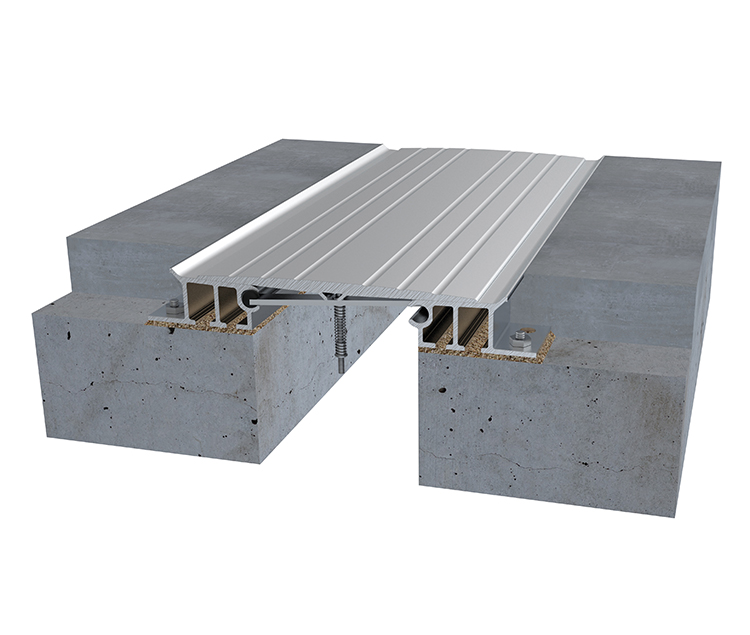

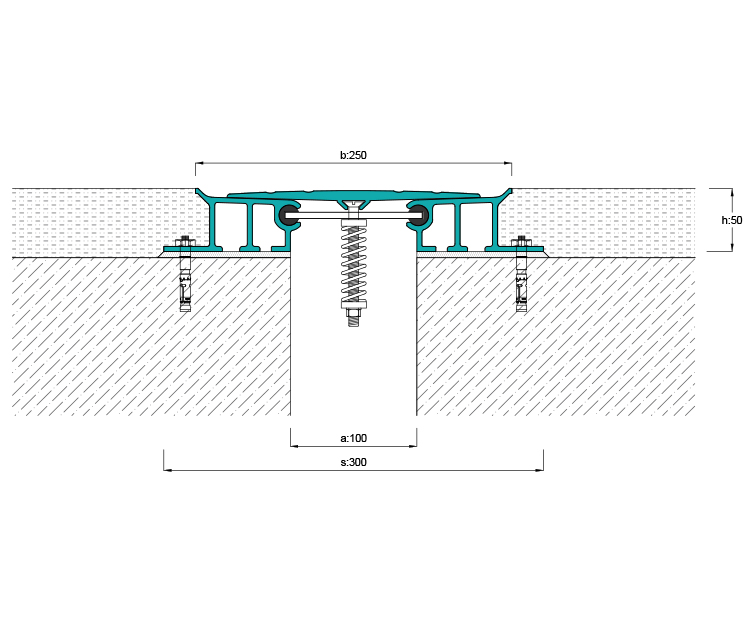

Flush Mounted Seismic Expansion Joint Floor Profile with three dimension movement capacity and wide aluminium surface.

Width:	100 mm
Height-Load Capacity:	50 mm \|Resistant to 15 tones vehicle load
Movement Capacity:	+/-50 mm
Profile Length:	3 mt
